electric water heater brass flange heating element

Electric Water Heater Brass Flange Heating Element For Hot Water

YL-1883
minimum order
1 piece
Country of Origin
shanghai
Quantity:
$12.00 - $13.00 / piece
Contact Now
add to cart
  • After-sales Service Provided:Return and Replacement
  • Warranty:1 Year
  • Type:Electric Heater Parts
  • Application:Car, RV, Outdoor, Hotel, Garage, Commercial, Household
  • Power Source:Electric
  • Place of Origin:Jiangsu, China
  • Brand Name:YuLing
  • Model Number:YL-1883
  • Product name:Electric water heater brass flange heating element for hot water
  • sheath material:copper
  • Voltage:220v
  • Power tolerance:+5%-10%
  • Certification:CQC/CE/RoHs/ISO9000
  • warranty:2-3years
  • Shape:U
  • Diameter:8.5mm
  • Color:yellow
  • MOQ:500 Pcs

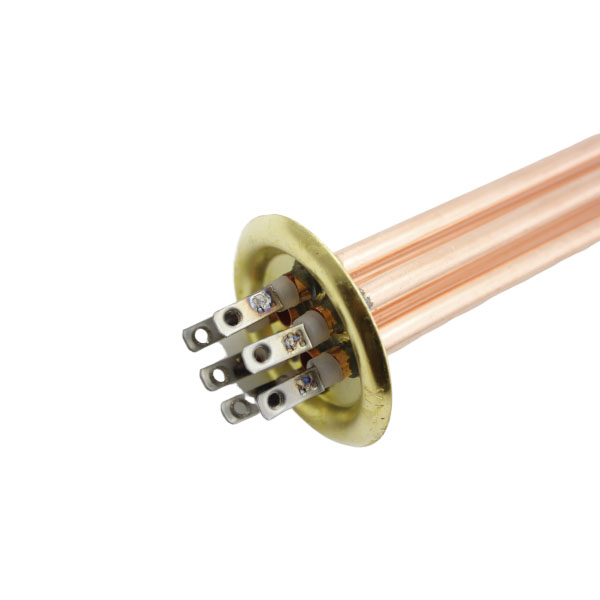

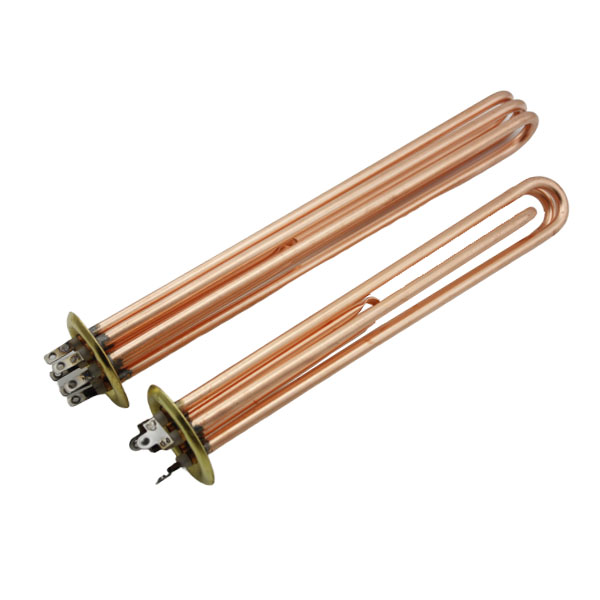

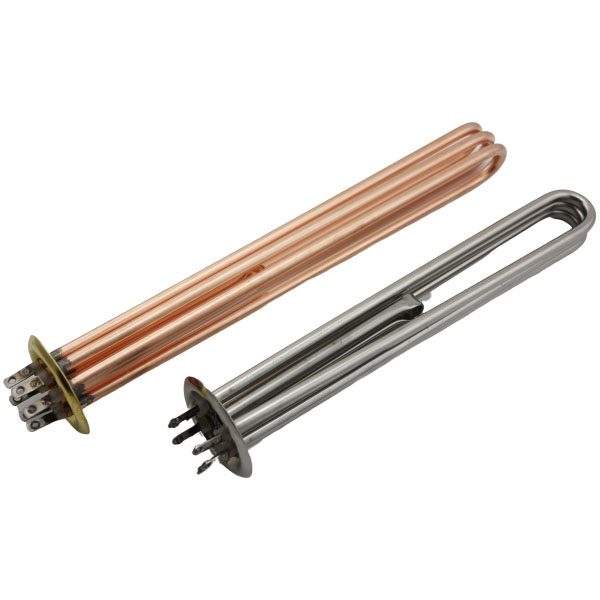

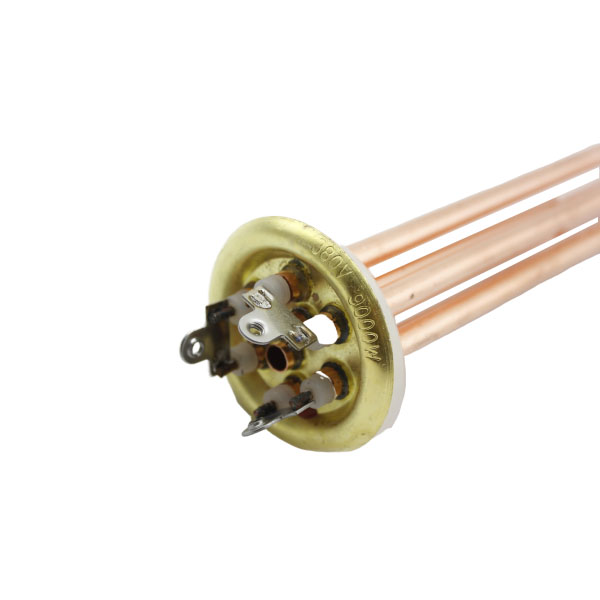

Electric water heater brass flange heating element for hot water

             40 YEARS' PRODUCTION EXPERIENCES



Specification parameter Detail Remark
Sheath MaterialCopperMaterials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/Wattage220V/1.8KWVoltage/Wattage /Tolerance can be customized as required,and Wattage tolerance(cold condition):+5%-10%. We also can produce 220V/2000W,220V/3000W,220V/4000W,220V/6000W...
Tube Diameter8.5mmTube diameter can be changed to 6.5mm,7mm,8.0mm,8.5mm,10.0mm or others as requested
MgOA GradeWe can use other powder if requested
Resistance WireNi80Cr20OCr25Al5 or other material if requested
TerminalSUS304Materials of terminal housing could be stainless iron,stainless steel if required
LeadsSUS304Materials of terminal piece could be stainless iron,stainless steel if required
FlangeDN40/47/50/58Other flange can be made if required
HME-SMNylonThis material highest heat resistance 160 ℃
Weight500g
Density10.6w/cm2

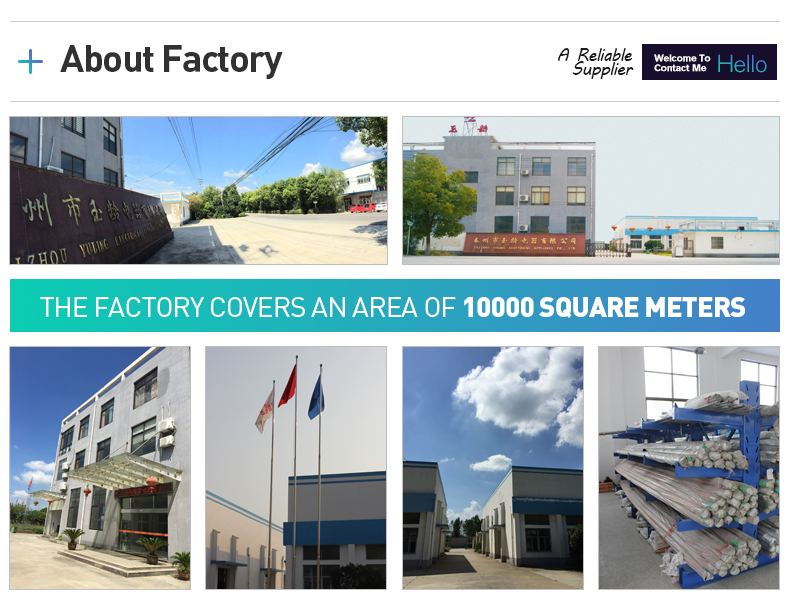

About Factory

Taizhou Yuling Electrical Appliance Co.,LTD (named Jiangyan Yuling Electric Equipment Factory)is one of the professional manufacturers engaged in tubular electric heating elements.and havenearly 40 years’ experience in this field.YuLing is founded in 1996,located in  Jiangsu Province, Taizhou City,JiangYan District, QinTong Industrial Part.

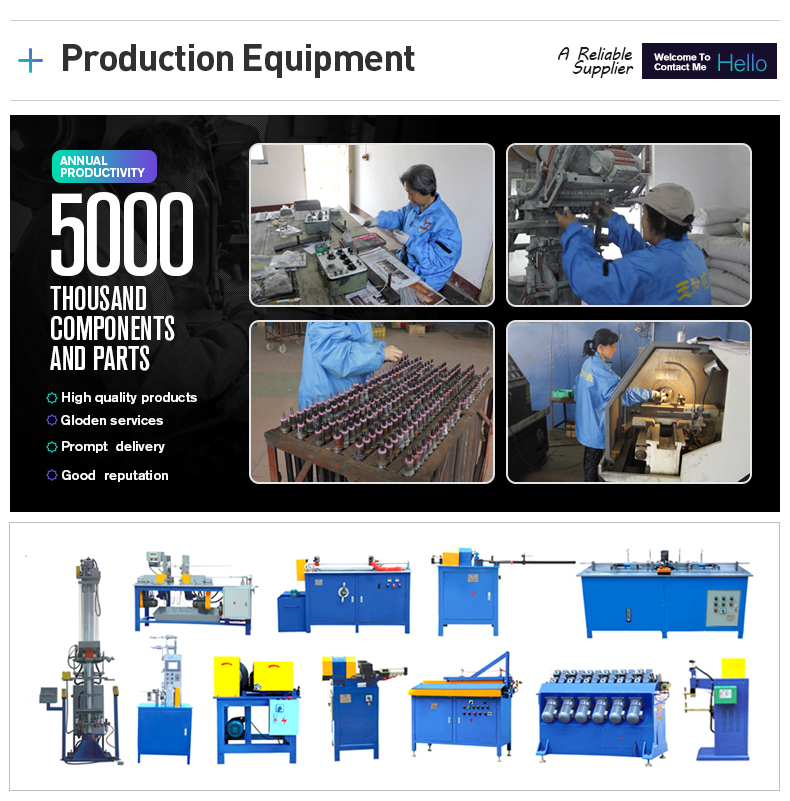

Production Equipment



Certifications



Customer Inspection



FAQ

1.Q:Worry about your money?
A: Trade Assurance can protect your money. (more information, pls contact me)

2.Q:Are you a factory or trading company?
A: We are a factory.specilizing in heating element for over 40 years.

3.Q:Where is your factory located? How can I visit there?

A: our factory is located in Qingtong Industrial Area,Jiangyan District,Taizhou City,Jiangsu Province,China,about 3 hours bus ride from Shanghai.All our clients,from home or abroad, are warmly welcome to visit us!

4.Q:How can I get some samples?
A: 1 pcs sample for free. If you need more samples please pay the cost, but we will return the samples cost to you when you formal order.

5.What is the delivery date of the samples?

A: About 5 ~ 10 days. Because some kind of the heating elements need to prepare the material.

6.Q:Are your products customized?

A: Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.

7.Which items you are inspection?
A: 1, External dimension.  2, Insulation Puncture Test (2000V 1amp).  3, Insulation resistance test (1000V).

8.Q:If we find the elements has quality problems I mean If, how will you dispose?
A: The frist, our factory has ISO9001:2008 quality control certificate and we has been implemented, so it is slim chance. But, if you find any elements has quality problems please tell me, then we will 100% compensation the rejects with next order!
