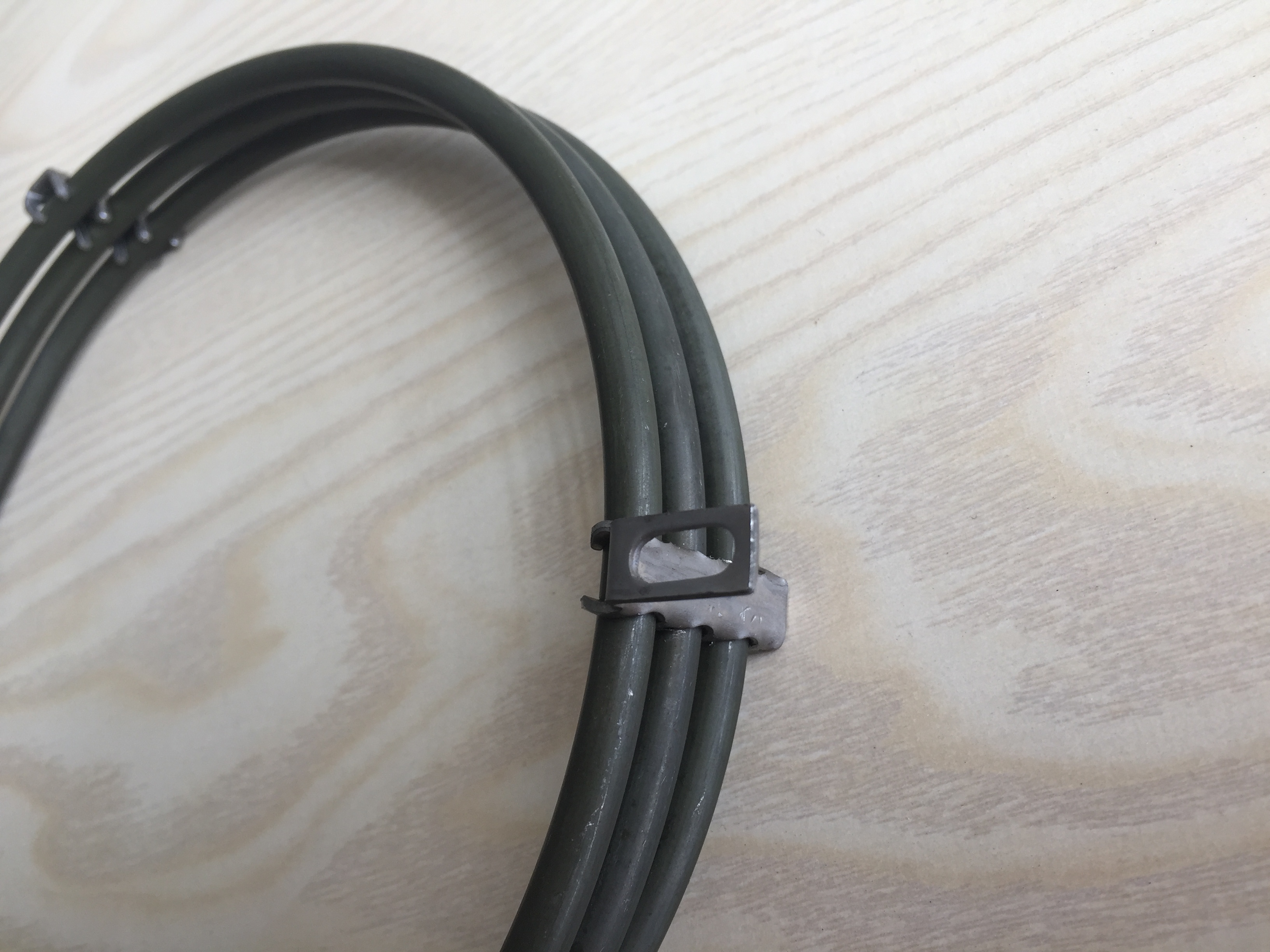

coil Heating elements for Oven and barbecue

YL-KX100M

minimum order

1 piece

Country of Origin

SHANGHAI

Quantity:

$4.70 - $5.20 / piece

Contact Now

add to cart

Applicable Industries:Electric Ovens
Condition:New
Type:Air Heater
Power Source:Electric
Place of Origin:Jiangsu, China
Brand Name:YULING
Dimension(L*W*H):250*190*80mm
Weight:0.25kg
Voltage:240v
Warranty:2 years
Working Temperature Range:-50~400℃
After-sales Service Provided:No after-sales service
Porducts name:coil Heating elements for Oven and barbecue
Certification:UL, CE, CQC, RoHS, ISO9001, CE, RoHS, UL, CQC
Business type:heater element manufacturer
Voltage(V)/Watt:240V/2500W
Tuber material:SUS304
tube Diameter:6.5mm
Color:Green
Experience in making:over 43 years heater element
QC:100% QC before shipment
sample:free

Coil Heating Elements For Oven And Barbecue

Specification parameter	Detail	Remark
Sheath Material	SUS304	Materials canbechangedtobecopper,sus321,sus316L,incoloy804,incoloy800as requested
Voltage/wattage	240V/2500W	Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10%
Tube Diameter	6.5mm	Tube diameter can be changed to 8.0mm,8.5mm,or other as requested
Resistance Powder	Magnesium oxide	We can use other powder if requested
Resistance Wire	0Cr25Al5	Ni80Cr20 or other material if requested

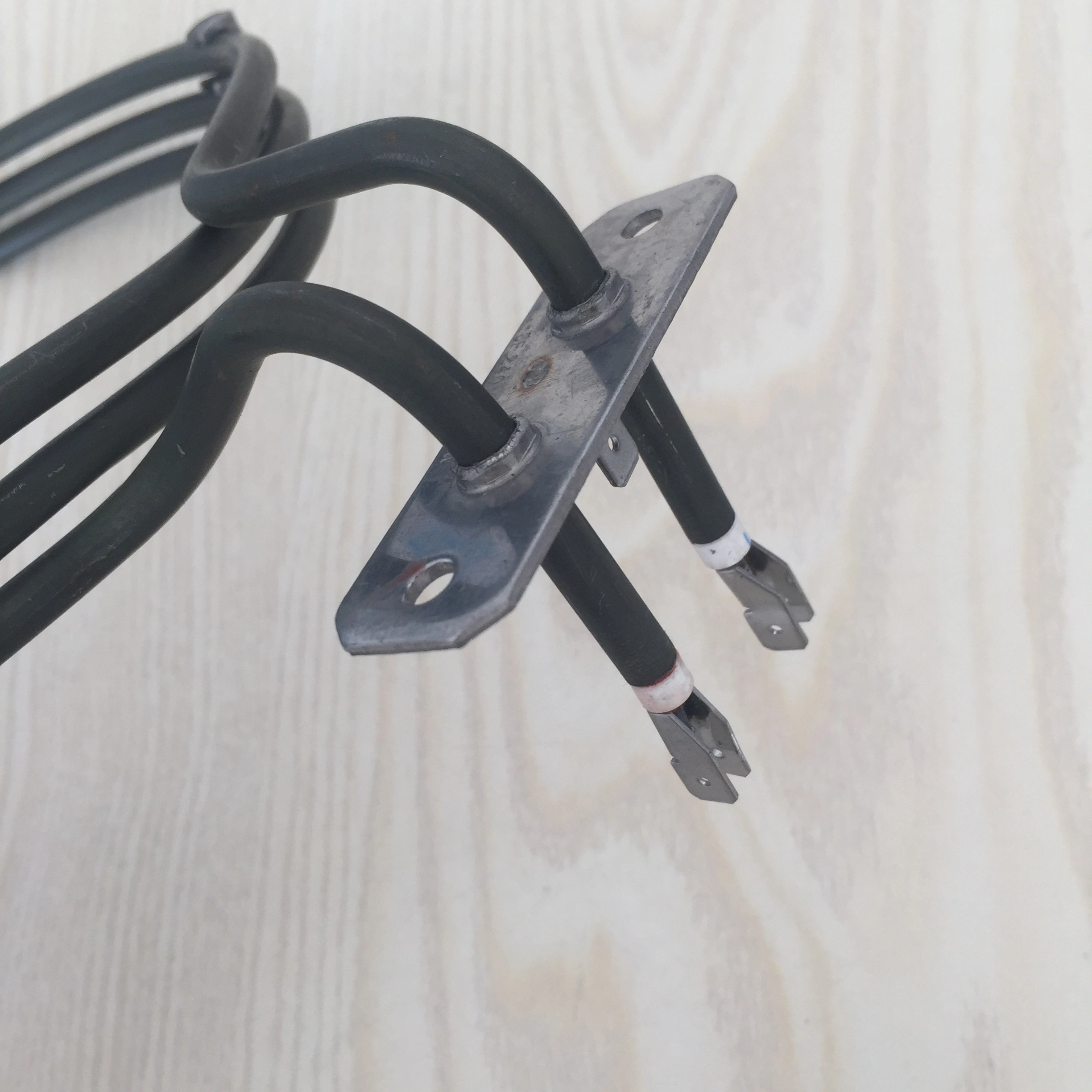

Faston Terminal	Nickel plated iron	Material of terminal housing could be stainless iron,stainless steel if required
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Warranty	1-2year

When inquire Stainless Steel Coil Heating Element For oven Cooker heater, please kindly specify:

We custom design various heating elements as your demands. Please kindly advise your specifications.

1, Material, diameter, length

2, Wattage and voltage

3, Working environment and temperature

4, Type of terminal

5, Drawing of special type configuration

6, Special testing requirements before shipment

7, We like to got any questions of heating elements from your side. We will try our best to do for you.

Why choose us?

1, Our factory has more than 40 years' experiences of produce many kinds of heating elements;

2, We are a factory of Alibaba Assessed 3 years' Gold Supplier;

3, ISO listed, 100% QC inspection Before Shippment;

4, CE, CQC, RoHS listed!

5, Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Russia, France, Nigeria... Our products always got the praise from customers, whether price or quality.

FAQS

1, Customer: You are factory or Trading company?

Answer: We are factory! Here is our factory address: Qintong Industrial Area, Jiangyan District, Taizhou City, Jiangsu Province.

2, Customer: What is the delivery date of the samples?

Answer: Within 5 days(usual).

3, Customer: Which certificates you have?

Answer: We have CE, RoHS, CQC and ISO9001:2008.

4, Customer: How do you inspect the elements before package?

Answer: We always 100%QC before packing.

5, Customer: Do you support non-standard custom-made?

Answer: Of course.

6, Customer: Which items you are inspection?

Answer: 1, External dimension. 2, Insulation Puncture Test (2000V 1amp). 3, Insulation resistance test (1000V).

7, Customer: Your elements sold to which countries?

Answer: Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Singapore, Korea, Russia, France, Nigeria, Janpan... Our products always got the praise from customers, whether price or quality.

8, Customer: If we find the elements has quality problems I mean If, how will you dispose?

Answer: The frist, our factory has ISO9001:2008 quality control certificate and we has been implemented, so it is slim chance. But, if you find any elements has quality problems please tell me, then we will 100% compensation the rejects with next order!

9, If there are any other questions about the heating elements, please feel free to contact me!
