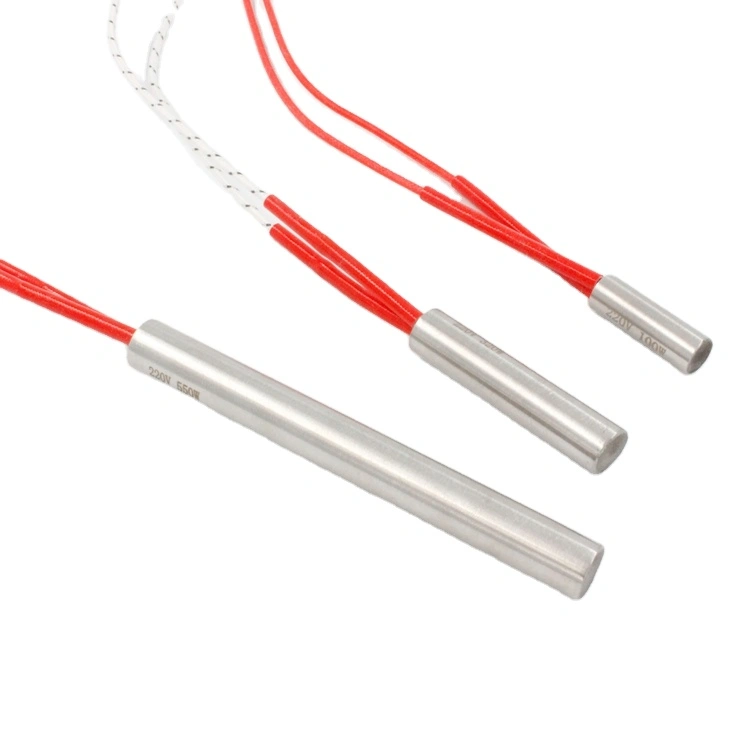

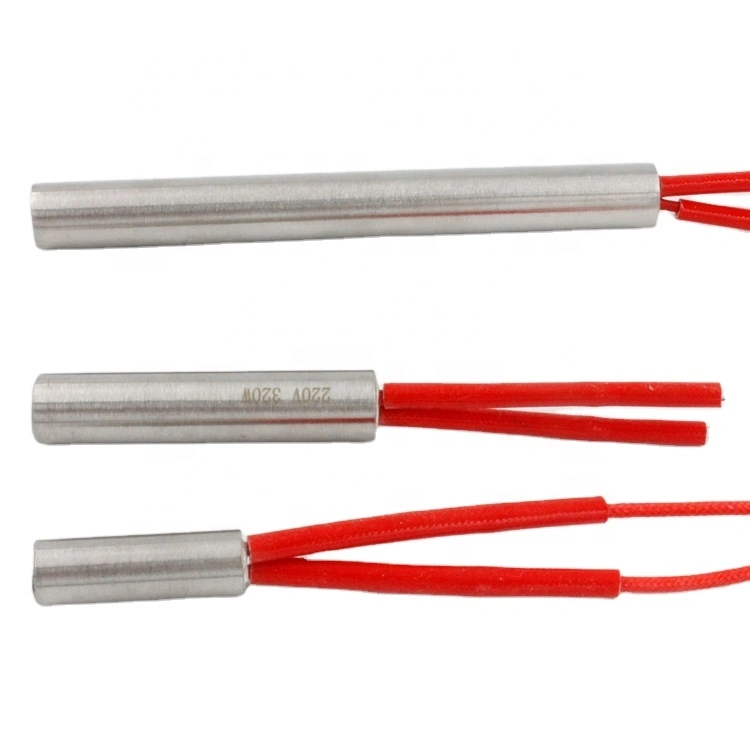

220v 100w High Density High Temperature Electric Heating Element Cartridge Heater
minimum order
1 set
Quantity:
$1.50 - $1.50 / set
- Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Condition:New
- Type:Cartridge Heater
- Power Source:Electric
- Place of Origin:Jiangsu, China
- Brand Name:YuLing

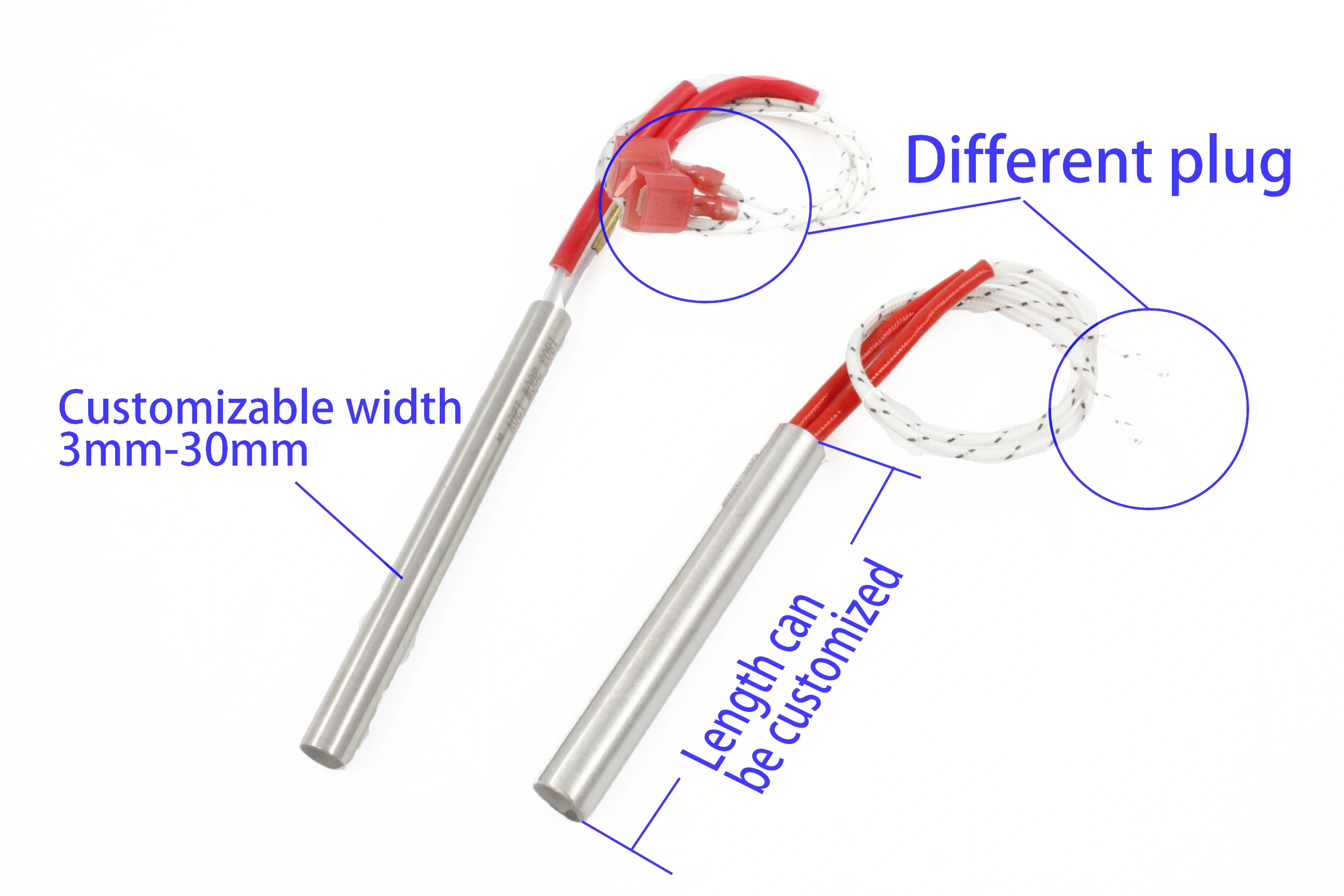

- Dimension(L*W*H):Custom Size, as your requests
- Weight:0.5 KG
- Voltage:12-480v
- Warranty:2 years
- Working Temperature Range:1 - 870 ℃
- Material:Stainless Steel
- Key Selling Points:Easy to Operate
- Warranty of core components:1 Year
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Product name:High Temperature Electric Heating Element Cartridge Heater
- Certification:UL CE CQC ROHS
- Tube Diameter:3mm/4mm/5mm/6mm/ etc.
- Dia tolerance:+0.05mm -0.1mm (+.002"-.004")
Product Description
Advantages

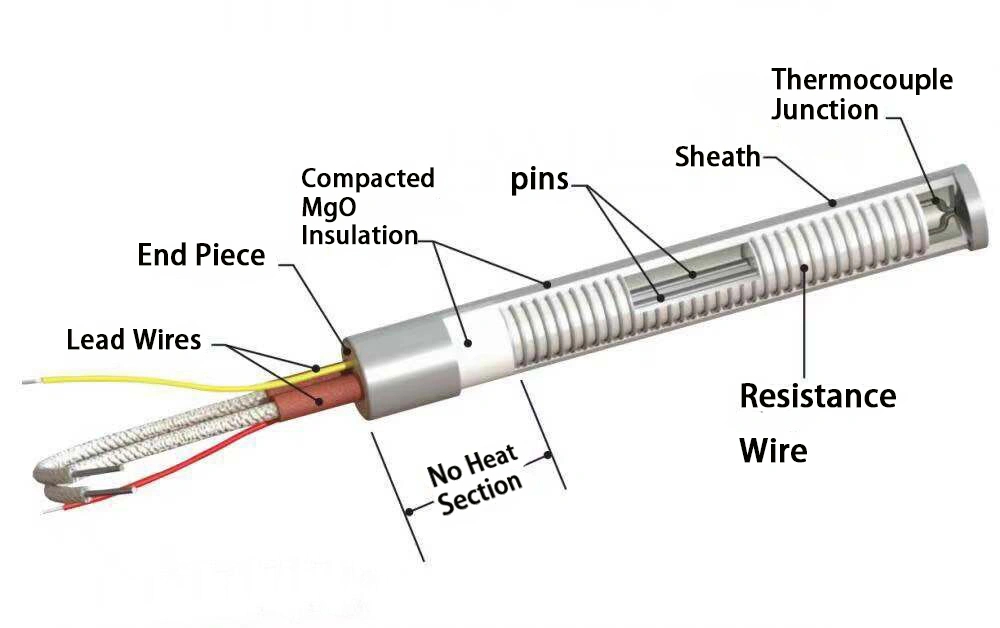

◆Internal Wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
◆External Wiring: high temperature resistance, uniform heating and high thermal conductivity.Date sheets
Resistance heating wire | NiCr 80/20 wire |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Length tolerance | ±1 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | type J / K / Ground wire |

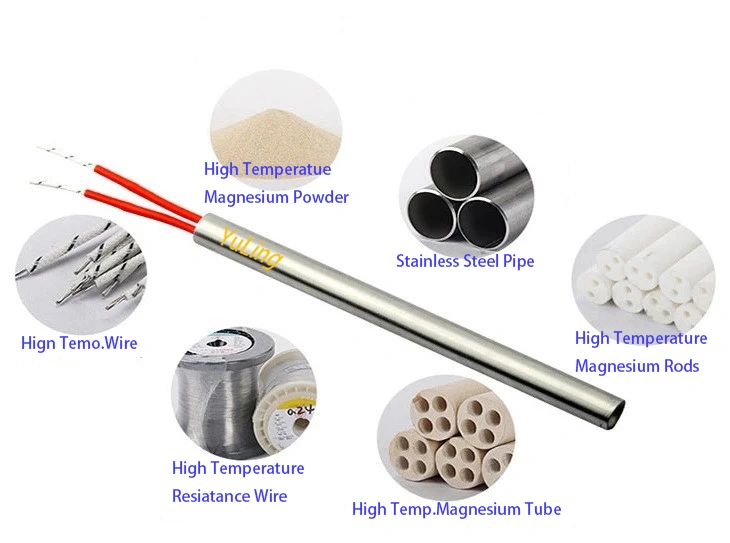

1.All products are using SUS304/316 or INCOLOY840 seamless stainless steel tube.
3.Cr20Ni80 resistance wire and Nickel lead wire with 500℃.
Before

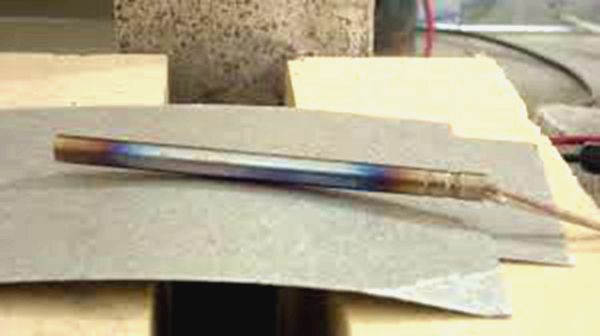

After
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance>30MΩ;
Related Products

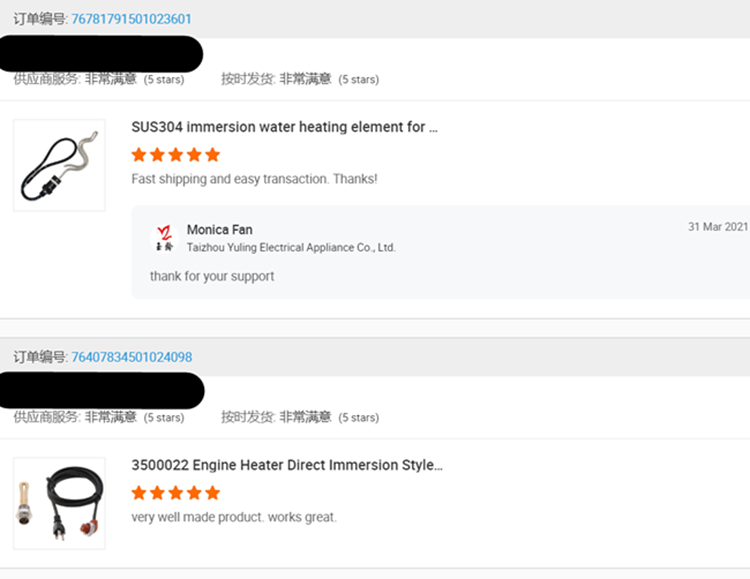

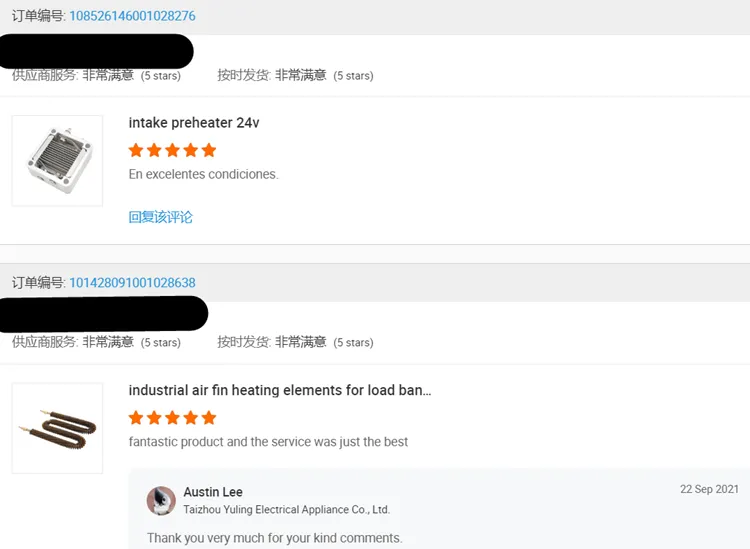

Customer Evaluation
